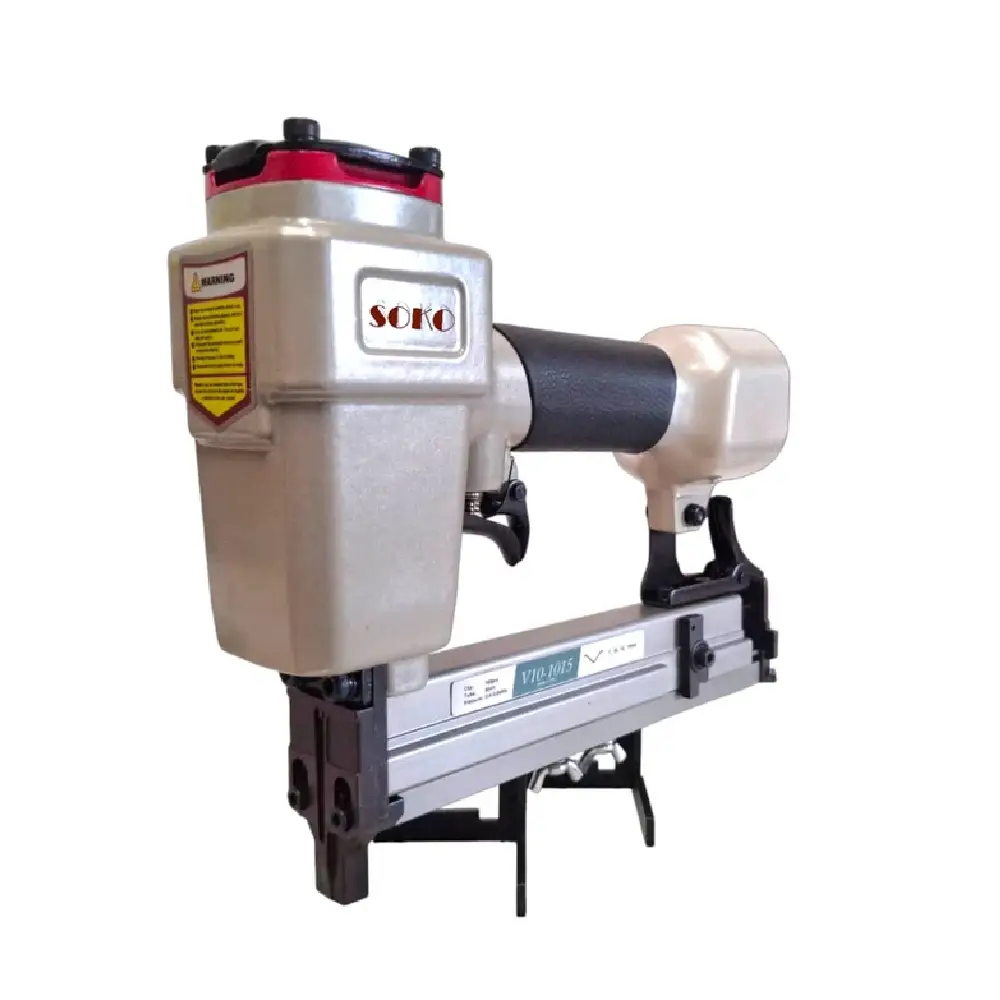

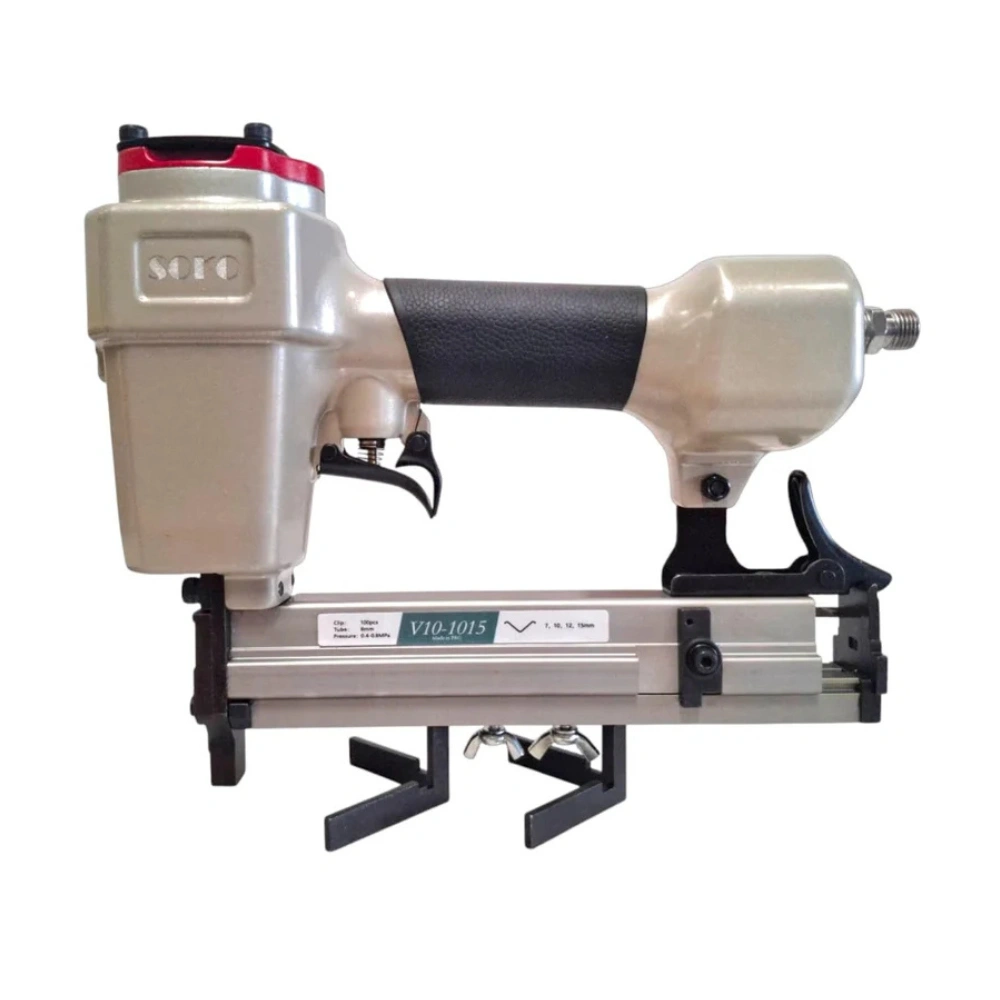

The V1015 Pneumatic Picture Framing Nailer is a specialized tool designed for efficiently joining picture frames, window sashes, and other wooden assemblies using V-shaped nails.
Key Features
V-Nail Compatibility: Supports 30-gauge V nails in lengths of 7mm, 10mm, 12mm, and 15mm, accommodating various frame thicknesses.
Quick Nail Size Adjustment: Features an external adjuster for swift conversion between nail sizes without disassembly
Ergonomic Design: Lightweight aluminum alloy body with an ergonomic grip reduces user fatigue during extended use.
Angle Locator: Rotatable and movable angle locator ensures accurate alignment of frame pieces.
Balance Bracket: Provides stability when the tool is placed on flat surfaces, preventing accidental tipping.
| Air Pressure | 100 psi |
|---|---|
| Stapling Capacity | 190 pins |
| Nail Gauge | 30 Gauge |
| Nail Length | Adjustable between 5/16" (7 mm) and 19/32" (15 mm) |
| Crown Width | 10.3 mm |
| Operating Pressure | 70–100 psi (4.8–6.9 bar) |
| Weight | Approximately 3.3 lbs (1.5 kg) |
| Dimensions | 170 x 205 x 50 mm |
| Magazine Capacity | 200 nails |
| Material | Aluminum alloy body with stainless steel components |
| Applications | Picture Framing, Window & Door Assembly, Craft Projects |
